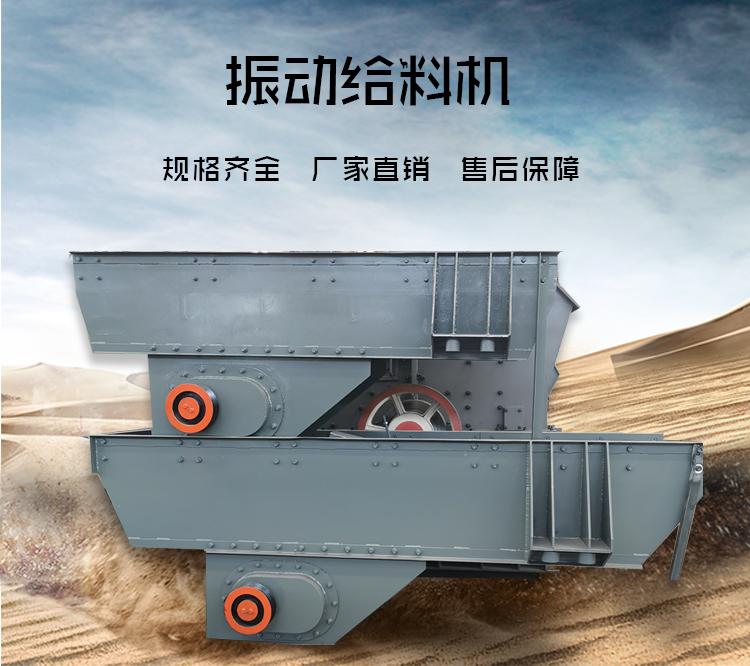

ZSW型振動給料機 Linear virating feeder
該給料機系直線振動式給料機，具有振動平穩、工作可靠、壽命長等特點，可為破碎機械連續、均勻喂料，并對物料進料粗篩分，廣泛用于選礦、建材、硅酸鹽和化學工業中的破碎、篩分聯合設備。
This type of linear vibrating feeder is characterized by stable vibration, reliable operation, long service life, etc. It is capable of feeding crushers in an uninterrupted and even way and coarsely sieving materials. Such linear vibrating feeders are widely used in crushing and screening equipment in ore-dressing, building materials, silicate and chemical industry.
| 型號規格Model | 進料料度 Feed size | 處理能力 Capa. | 偏心軸 轉速Speed | 功率 Power | 料槽尺寸 | 外形尺寸 Overrall dimensions | 重量 Weight |
| mm | t/h | r/mm | kw | mm | mm | t | |
| ZSW380×95Ⅱ | 500 | 96-160 | 500-714 | 11 | 3800×960 | 3882×2177 ×2066 | 4.1 |
| ZSW420×110 | 580 | 120-240 | 500-800 | 15 | 4200×1100 | 4282×2400 ×2150 | 4.7 |
| ZSW490×96 | 500 | 120-240 | 500-800 | 15 | 4900×960 | 4957×2277 ×2150 | 5.4 |
| ZSW490×110Ⅱ | 630 | 120-280 | 500-800 | 15 | 4900×1100 | 4950×2425 ×2031 | 5.4 |
| ZSW590×110 | 630 | 350 | 750 | 22 | 5900×1100 | 6000×2500 ×2150 | 6.1 |
| ZSW590×130 | 630 | 400 | 750 | 22 | 5900×1300 | 6000×2700 ×2150 | 6.3 |
| ZSW600×130 | 750 | 400-560 | 500-800 | 22 | 6000×1300 | 6082×2580 ×2083 | 7.8 |
