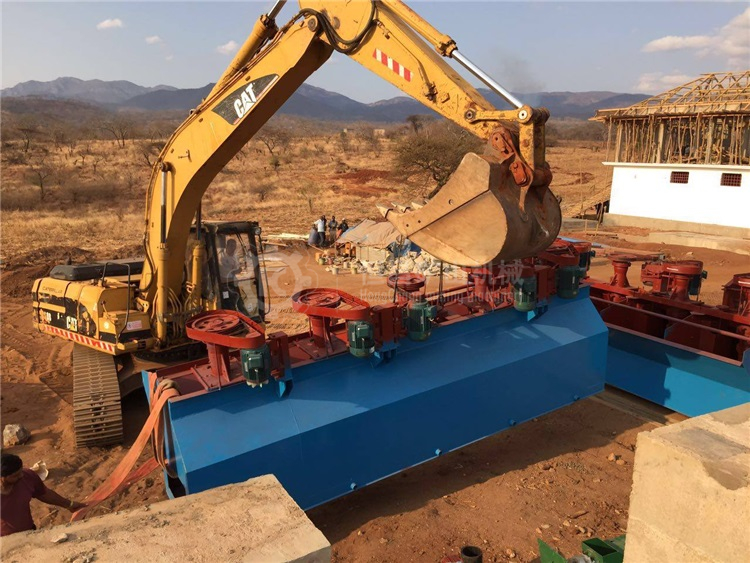

BF型自吸氣機械攪拌式浮選機
Mechanical
agitating flotation machine with auto air suction
BF型浮選機葉輪是由閉式雙截錐體組成，可產生強的礦漿下循環，其特點：（1）吸氣量大，功耗低。（2）每槽兼有吸氣、吸漿和浮選三重功能，自成浮選回路，不需任何輔助設備，水平配置，便于流程變更。（3）礦漿循環合理，能****限度地減少粗砂沉淀。（4）設有礦漿面的自控和電控裝置，調節方便。
The vanes of BF agitation flotation machine are composed of double truncated cones which can produce strong slurry cycle. Their characteristics are: (1) The suction capacity is large and power dissipation is low. (2) Every tank is equipped with three functions, i.e. air suction, slurry suction and flotation. Flotation circuit is formed automatically and no auxiliary equipment is needed. It is installed horizontally, making it easy for process changes. (3) The circulation of slurry is reasonable and can reduce sedimentation of coarse sand to the largest extent. (4) It is equipped with automatic control device and electric control devices, easy for adjustment.
| 型號 規格Model | 容積Volume | 槽體尺寸 Cell size | 葉輪 直徑Impeller Dia. | 處理 能力Capacity | 電機功率Power | 單槽質量Singe cell weight |
| m3 | mm | mm | m3/min | kw | kg | |
| BF-0.37 | 0.37 | 740×740×750 | 286 | 0.2-0.4 | 1.5/1.1 | 470 |
| BF-0.65 | 0.65 | 850×950×900 | 300 | 0.3-0.7 | 3/1.1 | 932 |
| BF-1.2 | 1.2 | 1050×1150×1100 | 450 | 0.6-1.2 | 5.5/1.1 | 1370 |
| BF-2.0 | 2 | 1400×1450×1120 | 500 | 1--2 | 7.5/1.1 | 1750 |
| BF-2.8 | 2.8 | 1650×1650×1150 | 550 | 1.4-3 | 11/1.5 | 2130 |
| BF-4 | 4 | 1900×2000×1200 | 650 | 2--4 | 15/1.5 | 2585 |
| BF-6 | 6 | 2200×2350×1300 | 700 | 3--6 | 18.5/1.5 | 3300 |
| BF-8 | 8 | 2250×2850×1400 | 760 | 4--8 | 30/1.5 | 4130 |
| BF-10 | 10 | 2250×2850×1700 | 760 | 5--10 | 30/1.5 | 4660 |
| BF-16 | 16 | 2850×3800×1700 | 850 | 8--16 | 37/1.5 | 8320 |
| BF-20 | 20 | 2850×3800×2000 | 850 | 10--20 | 37/1.5 | 8670 |
| BF-24 | 24 | 3150×4150×2000 | 920 | 12--24 | 45/1.5 | 8970 |
